Ceramic Fiber Brushes: The Ultimate Solution for Precision Surface Finishing from Shanghai Longguang Industrial Brush
High-Performance Abrasive Brushes for CNC Machining and Automated Finishing
In precision manufacturing, achieving a flawless surface finish on hard-to-machine materials requires tools that combine aggression with control. Ceramic fiber brushes have emerged as the go-to solution for removing tool marks, deburring edges, and polishing complex geometries—all without altering critical part dimensions.At Shanghai Longguang Industrial Brush, we manufacture a complete range of ceramic fiber brush series products designed for the most demanding surface finishing applications. Our proprietary ceramic fiber technology delivers exceptional cutting speed, consistent results, and extended tool life.
Note: Longguang is a manufacturer and exporter only. We do not provide local installation services.
1. What Are Ceramic Fiber Brushes?
Ceramic fiber brushes are advanced abrasive tools featuring filaments made from micro-crystalline alumina structures—not conventional nylon with embedded grit. Each ceramic fiber acts as an independent cutting tool, providing significantly higher material removal rates on tough alloys while maintaining a cool-cutting action that preserves workpiece thermal integrity.
Key Advantages
- Self-sharpening performance: Fibers micro-fracture at a controlled rate, constantly exposing fresh, sharp abrasive edges
- High temperature resistance: Withstands up to 400°C, suitable for dry or wet cutting
- No bristle loss: Zero FOD risk—critical for aerospace and medical applications
- Consistent finish: Maintains uniform scratch pattern throughout brush life
- Scratch-free treatment: Removes material without damaging workpiece integrity

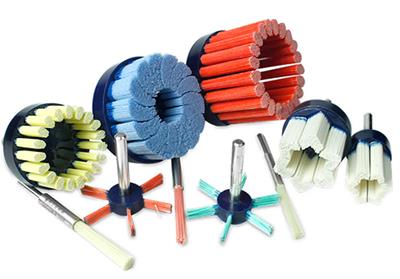

2. Product Range Overview
2.1 Disc Brushes for Large Surfaces
Designed for flat and contoured surfaces, our disc brushes provide broad coverage and consistent finishing.

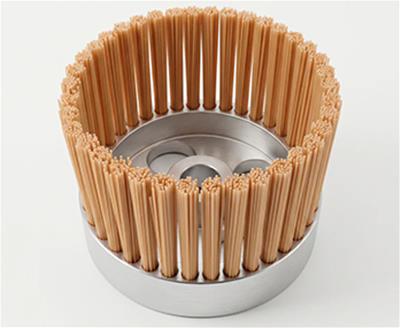

- Ceramic Fiber Disc Brush - Sleeve Type CNC finishing cells, multi-step processes: Adjustable filament exposure for versatile applications

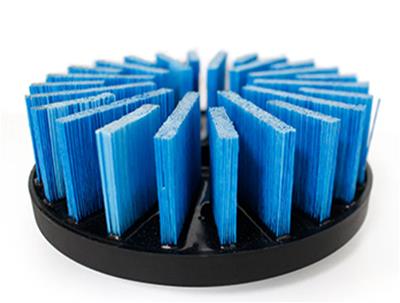

- Resin Injection Ceramic Fiber Disc Brush - High-precision grinding, micro-polishing: Rigid, resin-injected stability prevents flaring
- Equal Divide Ceramic Fiber Disc Brush - Segmented finishing: Allows coolant flow and chip evacuation
Why Choose Sleeve-Type?
The adjustable exposure design allows operators to fine-tune brush stiffness and aggression—from aggressive blending to delicate final polishing—using a single tool setup . This reduces tool changes and improves CNC cell efficiency.
2.2 End Brushes for Complex Geometries
For internal features, edges, and 3D contours, our end brushes provide precise access to hard-to-reach areas.

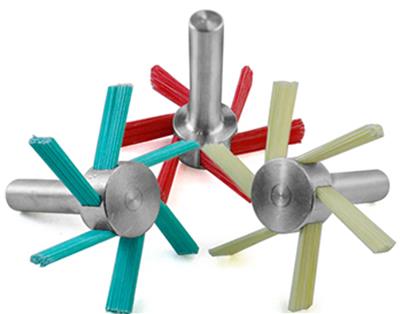

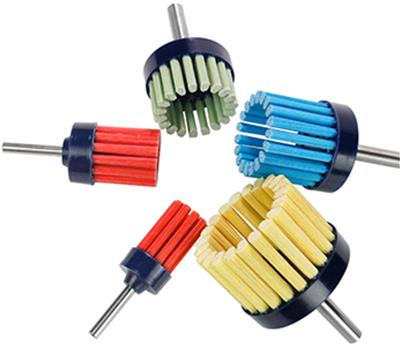

- Ceramic Fiber End Brush - Cross hole deburring, edge radiusing: Compact design for tight spaces

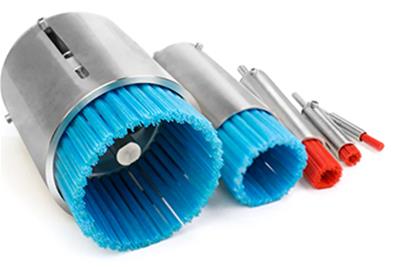

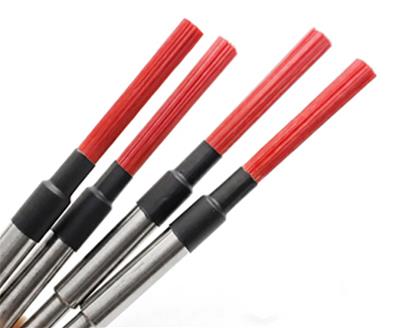

- Ceramic Fiber Rod Brush - Internal bore finishing: Extended reach
- Ceramic Fiber End Brush with Heat Shrink Sleeve - High-speed applications: Secure filament retention
2.3 Additional Ceramic Fiber Tools
- Ceramic Fiber Short Filament End Brush - Aggressive deburring: Stiff, high-density filaments
3. Grit Selection Guide
Different grit sizes achieve different surface finishes. Choose based on your material and target Ra.
Grit Colour (Typical) Best Application
#180 Brown/Coffee Heavy deburring, tool mark removal
#250 Orange General finishing
#320 Gray Surface blending
#400 Blue Fine finishing
#700 Yellow Pre-polish
#1000 White Near-mirror finish
4. Operating Parameters
Speed Recommendations
Brush Type Recommended RPM Max RPM
Disc brush (up to 65mm) 2,500 - 4,000 6,000
End brush (2-6mm, short trim) 7,000 - 10,000 15,000
End brush (2-6mm, long trim) 4,000 - 7,000 12,000
Processing Tips
Tip Why
Use in CNC or robotic cells Automated equipment maximizes consistency
Start at 60% of max RPM Adjust based on finish requirements
Dry or wet operation Cool-cutting action works in both
Wear eye protection Safety requirement for high-speed operation
5. Applications Across Industries
- Automotive - Transmission parts, engine components, valve bodies: Edge deburring, surface refinement
- Aerospace - Turbine blades, structural parts (Inconel, Titanium): FOD-safe finishing, edge radiusing
- Mold & Die - Injection molds, die cast tooling: EDM scale removal, polishing hardened steel (HRC 52+)
- Medical - Implants, surgical instruments: Mirror finish, non-destructive polishing
- General Machining - Aluminum, copper, stainless steel parts: Tool mark removal, surface leveling
For aerospace alloy parts processing, ceramic fiber brushes are the preferred choice for critical finishing.
6. Longguang's Ceramic Fiber Advantage
Advantage Benefit
Proprietary ceramic formulation Self-developed micro-crystalline alumina for superior cutting
Resin-injected stability No centrifugal flaring at high RPM
Adjustable exposure (sleeve type) One brush, multiple applications
ISO 9001:2015 certified Consistent quality for critical processes
Custom manufacturing Diameters, grits, and configurations to your specs
Conclusion
Ceramic fiber brushes represent a significant advancement in industrial surface finishing. Their self-sharpening properties, heat resistance, and consistent cutting action make them ideal for automated CNC finishing of hard alloys, precision components, and critical aerospace parts.
Quick Selection Summary
If You Are Processing... Recommended Brush
Large flat surfaces (hard alloys) Ceramic fiber disc brush (resin injection)
Complex 3D contours Ceramic fiber end brush
Multi-step CNC finishing Sleeve-type disc brush (adjustable exposure)
Internal bores and cross holes Ceramic fiber rod brush or end brush
Hardened steel (HRC 52+) Ceramic fiber brush with finer grit
Need ceramic fiber brushes for your precision finishing operation? Send us your material, geometry, and finish requirements.
Our engineering team will recommend the right ceramic fiber brush for your application.
