End Brush Series from Longguang Brush: The Complete Guide to Precision Deburring and Surface Finishing

How to Select the Right End Brush for Tight Spaces, Cross Holes, and Complex Geometries

In precision manufacturing, some of the most critical finishing tasks occur in the tightest spaces. Cross holes in hydraulic valve blocks, internal passages in aerospace components, and recessed features in molds all require tools that can reach where larger brushes cannot. End brushes are specifically designed for these demanding applications.

This guide covers everything you need to know about end brushes, from types and materials to selection criteria and best practices for deburring, cleaning, and surface finishing in confined areas.

At Shanghai Longguang Industrial Brush, we manufacture a complete range of end brushes for precision manufacturing and assembly operations. Our custom wire brushes are trusted by automotive, aerospace, and general manufacturing industries worldwide.

1. What Are End Brushes?

End brushes are compact, shaft-mounted rotary tools designed for use with power tools such as die grinders, drills, and CNC machines. They feature a narrow head of compact bristles that fit into pipes, tight spaces, recessed sections of workpieces, and molds.

Why End Brushes?

Capability Benefit

Access tight spaces Reaches internal bores, cross holes, and recessed features

Precision control Shaft-mounted design allows accurate targeting

Versatile mounting Compatible with die grinders, CNC tool holders, and drill chucks

Multiple configurations Crimped, knotted, abrasive, and encapsulated options

End brushes are particularly effective for applications where larger disc or wheel brushes cannot fit.

2. Types of End Brushes

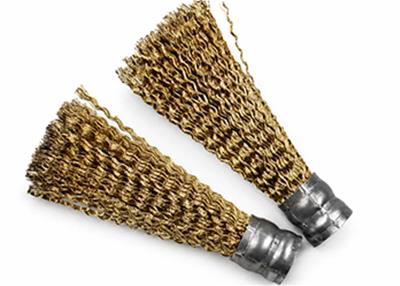

Crimped Wire End Brushes

Crimped wire brushes feature wavy, flexible filaments that conform to irregular surfaces.

Attribute Description

Action Uniform brushing, gentle to moderate

Best for Light to medium deburring, cleaning, polishing

Surface finish Smoother than knotted wire

Applications: Removing rust, paint, scale, and light burrs from metal surfaces; blending and polishing weld seams.

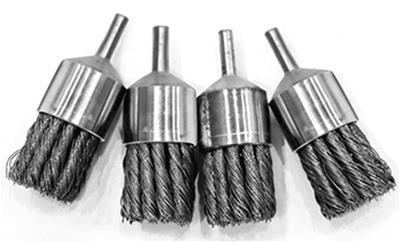

Knotted (Twisted) Wire End Brushes

Knotted wire end brushes feature wire filaments twisted into tight knots for increased aggressiveness and durability.

Attribute Description

Action Aggressive cutting

Best for Heavy deburring, weld cleaning, scale removal

Surface finish Rougher; may require finishing pass

Applications: Heavy rust and scale removal, weld slag cleaning, aggressive surface preparation.

Banded End Brushes

Banded end brushes have a metal strap wrapped around the exposed bristles just below the brush head.

Attribute Description

Action Controlled, less flaring

Best for Precision applications requiring less wire flare

Advantage Increased aggression with more precise tip control

Abrasive Nylon End Brushes

Abrasive nylon end brushes use nylon filaments impregnated with abrasive grit instead of wire bristles.

Attribute Description

Action Gentle, controlled finishing

Best for Soft metals (aluminum, brass), plastics, delicate surfaces

Abrasive options Silicon Carbide, Aluminum Oxide, Ceramic

Advantages: Non-metallic, non-sparking, and safer on delicate surfaces.

3. Bristle Material Selection

Material Best For Key Feature

Stainless Steel Aluminum, stainless steel, non-ferrous metals Corrosion-resistant, no iron contamination

Carbon Steel Carbon steel, cast iron Aggressive cutting, economical

Brass Soft metals, explosive environments Non-sparking, gentle

Abrasive Nylon Soft metals, plastics, composites Non-metallic, multiple grits available

Critical rule: Never use a carbon steel brush on aluminum or stainless steel—embedded steel particles will rust and cause contamination.

4. Key Applications

Industry Application Recommended Brush Type

Hydraulic Cross hole deburring, valve body cleaning Crimped or knotted wire

Aerospace Hole cleaning, bonding preparation Stainless steel wire

Automotive Engine port cleaning, mold finishing Abrasive nylon or wire

Electronics PCB cleaning, delicate component deburring Abrasive nylon

Mold & Die Internal cavity polishing Crimped wire or nylon

5. Selection Guidelines

By Brush Type

If You Need... Choose...

Light deburring Crimped wire end brush

Heavy deburring Knotted wire end brush

Precision, controlled action Banded end brush

Non-marring finishing Abrasive nylon end brush

Non-sparking application Brass wire end brush

By Material

Workpiece Material Recommended Bristle

Aluminum, Stainless Steel Stainless steel wire

Carbon Steel Carbon steel wire

Brass, Copper, Aluminum (delicate) Brass wire

Plastic, Soft Metals Abrasive nylon

By Size

Feature Common Range

Brush diameter 1/4" to 1"

Shank diameter 1/8" to 1/4" (most common: 1/4")

Shank type Straight, threaded, quick-change

6. Operating Guidelines

Parameter Recommendation

Speed Up to 20,000-25,000 RPM (check brush rating)

Pressure Light to moderate

Technique Avoid dwelling; use light, consistent passes

Always follow the manufacturer's maximum RPM rating to prevent wire breakage and potential injury.

7. Longguang's End Brush

Portfolio

Product Best Application Key Feature

Stainless Steel End Brush General deburring, cleaning, finishing Stainless steel wire—no iron contamination

Twisted Knot End Brush Heavy deburring, aggressive cleaning High-impact knotted action

Ceramic Abrasive End Brush Hard alloys, precision finishing Ceramic abrasive, long life

Rubber-coated Steel Wire End Brush Reduced scratching on finished parts Protective rubber coating

Ceramic Fiber End Brush High-temperature applications Heat-resistant ceramic fibers

Why Choose Longguang as Your End Brush Supplier?

Advantage Benefit

Complete product range Crimped, knotted, abrasive, and specialty end brushes

Multiple materials Stainless steel, carbon steel, brass, abrasive nylon

Custom manufacturing Any diameter, trim length, or shank size

ISO 9001:2015 certified Consistent quality

Technical support Application engineering for deburring operations

Conclusion

End brushes are essential tools for precision deburring and surface finishing in tight spaces. By selecting the right type—crimped, knotted, banded, or abrasive nylon—and the correct material for your workpiece, you can achieve consistent, high-quality results.

Quick Selection Summary

If You Are Deburring... Recommended Brush

General steel parts Carbon steel or stainless steel end brush

Aluminum or stainless steel Stainless steel end brush

Delicate surfaces Abrasive nylon end brush

Heavy burrs Knotted wire end brush

Explosive environments Brass wire end brush

Precision, controlled finishing Banded end brush

Need end brushes for your deburring operation? Send us your application, material, and part geometry. Our engineering team will recommend the right end brush for your needs.
